Steptek Quality Extra Heavy Duty Narrow Base Model Steps - 490mm Tread

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Name: Steptek Quality Extra Heavy Duty Narrow Base Model Steps
Brand: Acerax
SKU: S960
Price: 661.70 GBP
Availability: InStock

Product code: AR-S960

£661.70 ex VAT

£794.04 inc VAT

Order now with Lead Time 40 days

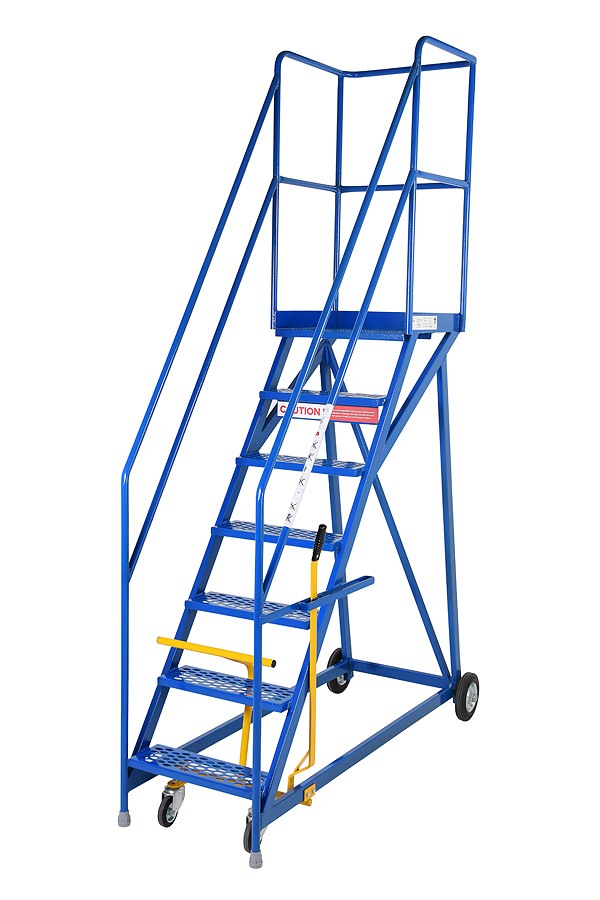

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Hand built with attention to detail, both in design and manufacture, to ensure total reliability and many years of arduous operation. Over load tested to 200kg.

Construction: Welded heavy gauge steel box section and bar. Fitted with hand lock lever anchorage; when locked, the front feet rest firmly on the floor, feet fitted with protective grey non-marking rubber feet. Safety warning bar fitted to protrude in front of steps, linked to hand lock lever mechanism, to deter users from climbing steps when still in ‘mobile’ mode.

Narrow base model: Outboard wheels mounted on straight base frame for optimum space saving requirements. Finish: Main structure blue epoxy finish; safety bar and hand lever mechanism in safety yellow.

Wheels: Front 2 swivel castors with 100mm diameter rubber tyred wheels, with roller bearings. 2 rear axle mounted 200mm diameter wheels with rubber tyres and roller bearings.

A caution notice is fitted to remind user of operation procedure. A health and Safety at Work information sheet is supplied.

BSI Kitemark

Tread Width - 490mm

Platform 540 x 500mm (W x D)

See options for steps. 10 Treads and above is supplied in 2 halves.

Project Planning:

Have a large project? Need a little help with your design and installation?

Get a quote for Project Planning, CAD Design & Installation

Buy Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Configure:

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S960

Treads:

3 Tread

Treads:

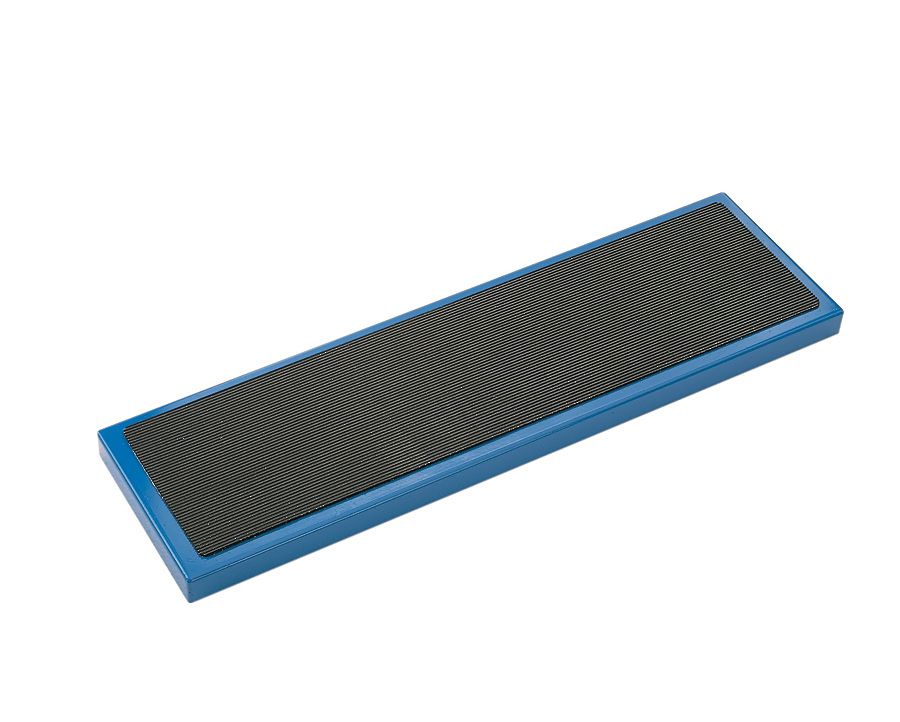

Ribbed Rubber Tread

£661.70

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S961

Treads:

4 Tread

Treads:

Ribbed Rubber Tread

£762.37

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S962

Treads:

5 Tread

Treads:

Ribbed Rubber Tread

£906.03

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S963

Treads:

6 Tread

Treads:

Ribbed Rubber Tread

£1139.52

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S964

Treads:

7 Tread

Treads:

Ribbed Rubber Tread

£1285.07

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S965

Treads:

8 Tread

Treads:

Ribbed Rubber Tread

£1424.81

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S966

Treads:

9 Tread

Treads:

Ribbed Rubber Tread

£1593.34

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S967

Treads:

10 Tread

Treads:

Ribbed Rubber Tread

£1863.43

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S968

Treads:

11 Tread

Treads:

Ribbed Rubber Tread

£2018.23

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S969

Treads:

12 Tread

Treads:

Ribbed Rubber Tread

£2162.01

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S970

Treads:

13 Tread

Treads:

Ribbed Rubber Tread

£2315.06

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S971

Treads:

14 Tread

Treads:

Ribbed Rubber Tread

£2516.93

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S972

Treads:

15 Tread

Treads:

Ribbed Rubber Tread

£2771.65

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S980

Treads:

3 Tread

Treads:

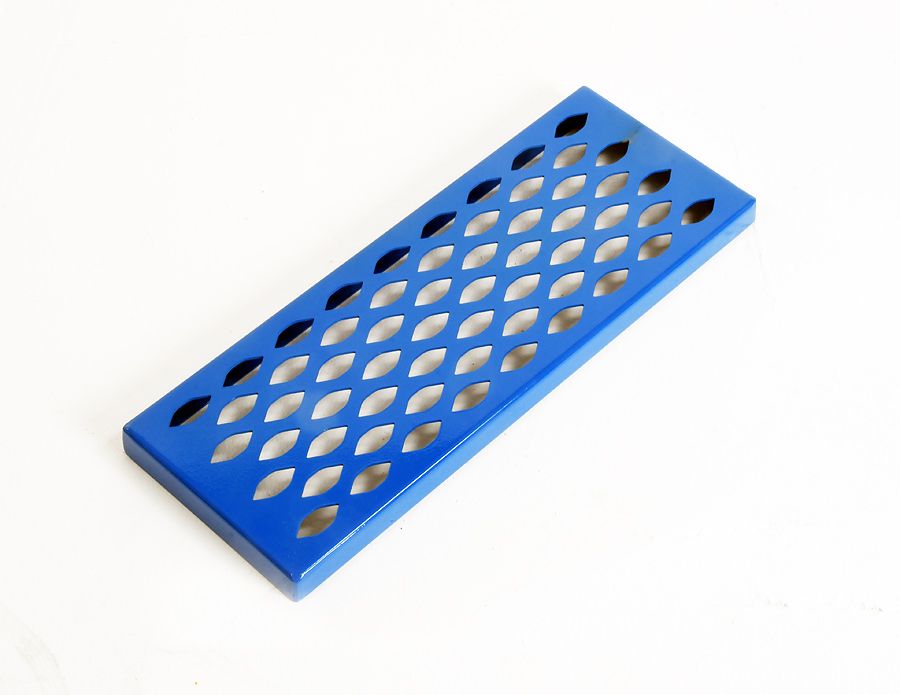

Expamet Tread

£648.58

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S981

Treads:

4 Tread

Treads:

Expamet Tread

£748.08

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S982

Treads:

5 Tread

Treads:

Expamet Tread

£889.75

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S983

Treads:

6 Tread

Treads:

Expamet Tread

£1114.92

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S984

Treads:

7 Tread

Treads:

Expamet Tread

£1265.06

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S985

Treads:

8 Tread

Treads:

Expamet Tread

£1403.80

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S986

Treads:

9 Tread

Treads:

Expamet Tread

£1574.40

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S987

Treads:

10 Tread

Treads:

Expamet Tread

£1842.89

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S988

Treads:

11 Tread

Treads:

Expamet Tread

£1998.75

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S989

Treads:

12 Tread

Treads:

Expamet Tread

£2140.19

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S990

Treads:

13 Tread

Treads:

Expamet Tread

£2289.59

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S991

Treads:

14 Tread

Treads:

Expamet Tread

£2490.72

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Code: S992

Treads:

15 Tread

Treads:

Expamet Tread

£2747.58

QTY

Steptek Quality Extra Heavy Duty Narrow Base Model Steps

Acerax offer a comprehensive portfolio of warehouse equipment including pallet, cantilever, cable & coli racking and longspan shelving. We are also SEMA approved rack inspectors, offer racking repairs and a full relocation service including safe dismantling and re-installation of your existing racking. In our on-line shop you will find an impressive range of industrial products from warning signs to pallet trucks. We are constantly expanding this range so please visit our site regularly to see what's new from Acerax!

No. treads	Average Working Height	Platform Height	Overall (HxWxD) mm	Part No.	Kg	Part No.	Kg
3	2190	690	1690 x 700 x 930	S960	51	S980	43
4	2420	920	1920 x 700 x 1140	S961	59	S981	51
5	2650	1150	2150 x 700 x 1240	S962	69	S982	57
6	2880	1380	2380 x 700 x 1410	S963	88	S983	76
7	3110	1610	2610 x 700 x 1570	S964	97	S984	84
8	3340	1840	2940 x 700 x 1740	S965	107	S985	94
9	3570	2070	3070 x 700 x 1900	S966	117	S986	104
10	3800	2300	3300 x 900 x 2060	S967	131	S987	119
11	4030	2530	3530 x 900 x 2230	S968	140	S988	127
12	4260	2760	3760 x 900 x 2400	S969	151	S989	138
13	4490	2990	3990 x 1230 x 2560	S970	163	S990	148
14	4720	3220	4220 x 1230 x 2730	S971	175	S991	160
15	4950	3450	4450 x 1230 x 2890	S972	187	S992	172

The delivery charge is for the UK mainland only (excluding the Scottish Highlands and Islands). For deliveries outside the UK mainland please email sales@acerax.co.uk for details. Some items shown as 'in stock' are available from stock via the manufacturer - we will arrange for these items to be sent direct to your nominated delivery address.
