Single Sided Cantilever Racking 1000mm Wide Bays
Product code: AR-CMS/191006/S3
£480.43 ex VAT
£576.52 inc VAT
Order now with Lead Time 3 - 5 days

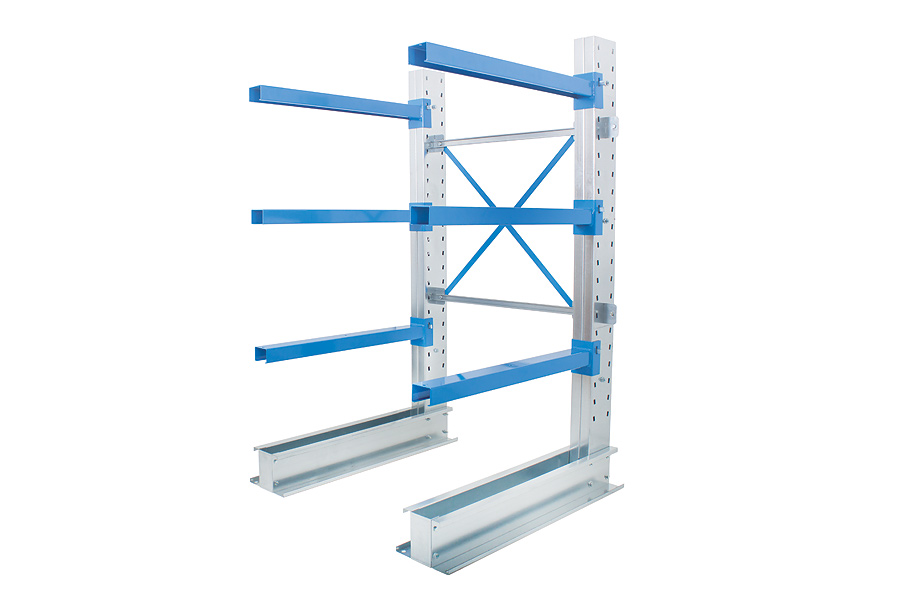

Single Sided Cantilever Racking - 1000mm wide.
Cantilever racking is used to store long items. It is also available as Double Sided
Cantilever racking is sold as standard 1000mm wide, it is also available at 1500mm wide.
There are three height options – 1976mm, 2432mm and 2964mm. If you require Cantilever racking over these heights – please contact our sales team – sales@acerax.co.uk
There are three arm depth options – 600mm, 800mm and 1000mm. You may require optional end stops

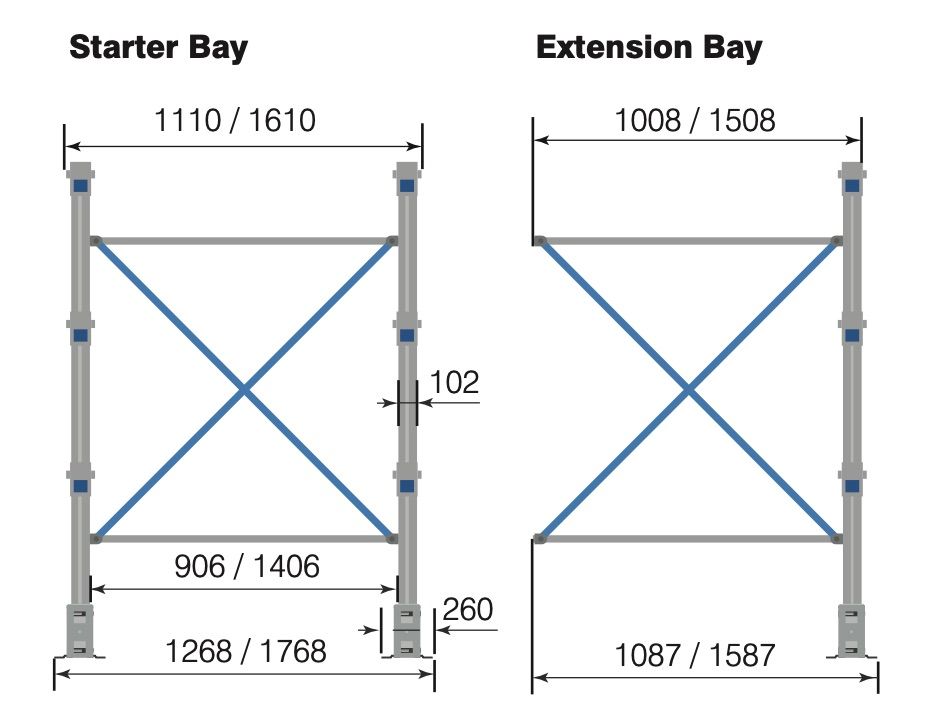

For our online shop we sell Cantilever racking in kits. Either a starter kit or an extension kit.
Starter kit includes:- 2 x bases and 2 x columns plus bracing and fixings (not floor fixings) and 3 arms.
Extension kit includes:- 1 x base and 1 x column plus 6 arms and bracing and fixings (not floor fixings).
Specification:-
- Frame loading – up to 2200Kg
- Arm loading up to 600Kg
- Frame – Galvanised Steel. Arms - Steel, Blue (RAL5015)
- Delivery normally 3 to 5 days.
Project Planning:
Have a large project? Need a little help with your design and installation?
Get a quote for Project Planning, CAD Design & Installation
